MityDSP::tcGuiObject Class Reference

#include <ggui/gui_object.h>

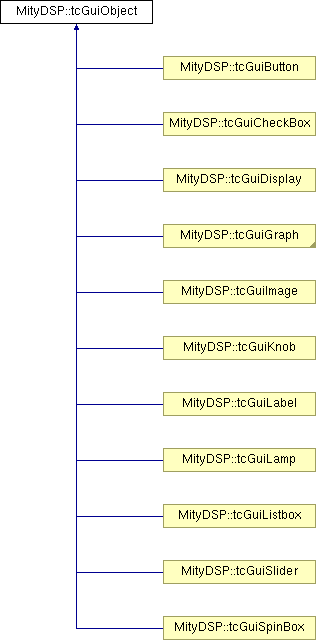

Inheritance diagram for MityDSP::tcGuiObject:

Public Types
enum	teAlignment { eeAlignLeft = 0x0000, eeAlignHCenter = 0x0001, eeAlignRight = 0x0002, eeAlignHMask = 0x0003, eeAlignTop = 0x0000, eeAlignVCenter = 0x0010, eeAlignBottom = 0x0020, eeAlignVMask = 0x0030, eeAlignCenter = eeAlignHCenter\|eeAlignVCenter, eeAlignTopLeft = eeAlignTop\|eeAlignLeft }
Public Member Functions
	tcGuiObject (const char name, tcBench bench, int idd, uint32 type)
virtual	~tcGuiObject ()
virtual bool	ParseXML (TiXmlElement *ahDom)
const char *	name ()
const GSTRING *	gname ()
uint32	type ()
int	idd ()
const char *	get_text ()
bool	is_visible ()
int	get_x_pos ()
int	get_y_pos ()
int	get_height ()
int	get_width ()
void	get_rect (tcRect &rect)
int	get_type ()
virtual tcGuiObject *	get_parent_obj ()
virtual void	create ()
virtual void	show (bool show=true)
virtual void	hide ()
virtual void	set_text (const char *text)
virtual void	set_x_pos (int x)
virtual void	set_y_pos (int y)
virtual void	set_height (int h)
virtual void	set_width (int w)
void	set_image (tcGuiImage *image)
virtual void	set_text_x_pos (int x)
virtual void	set_text_y_pos (int y)
void	set_text_font (tcDspFont *font)
void	set_text_align (int align)
void	set_text_color (tsRgb color)
void	set_text_vertical (bool vert)
void	set_text_wrap (bool wrap)
void	set_fg_color (tsRgb color)
void	set_bg_color (tsRgb color)
void	set_user_id (int id)
virtual void	set_animate (bool animate)
void	set_user_ptr (void *ptr)
int	get_user_id ()
tsRgb	get_fg_color ()
tsRgb	get_bg_color ()
tsRgb	get_text_color ()
virtual bool	is_point_in (int x, int y)
virtual bool	is_rect_overlapped (tcRect &rect)
virtual bool	lbutton_down (int x, int y)
virtual void	lbutton_up (int x, int y)
virtual void	mouse_move (int x, int y, int flags)
virtual bool	does_l_mouse ()
virtual void	animate ()
virtual void	draw (tcGuiDspDisplay &pd)
void	invalidate (tcRect *bckgrnd_redraw=NULL)
Protected Member Functions
virtual void	calculate_text_rect (int alignment)
virtual void	draw_text (tcGuiDspDisplay &pd, int alignment, int dip=0, float opacity=1.0F)
Protected Attributes
bool	m_created
	true when XML file parsing is complete and object has been initialized
bool	m_visible
	true when object is potentially visible on the full screen
uint32	m_type
tcBench *	m_bench
	pointer to the tcGuiBench (widget manager) object
bool	m_animate
	true if this widget will perform animation
GSTRING	m_name
	name of the widget
int	m_idd
	unique ID number of the widget
int	m_x_pos
	screen x position of the widget
int	m_y_pos
	screen y position of the widget
int	m_height
	widget height
int	m_width
	widget widget
tcRect	m_obj_rect
	bounding rectangle of widget (screen coordinates) (may not include all text)
tcRect	m_text_rect
	bounding rectangle text for widget (screen coordinates)
int	m_lcapture_x
int	m_lcapture_y
int	m_rcapture_x
int	m_rcapture_y
tsRgb	m_fg_color
	foregroun color to use when rendering tcGuiObject
tsRgb	m_bg_color
	background color to use when rendering tcGuiObject
tsRgb	m_text_color
	color to use when rendering tcGuiObject text
tcDspFont *	m_font
	font to use when rendering tcGuiObject text
GSTRING	m_text
	base tcGuiObject class text data
int	m_text_x_pos
	reference screen x position of object text
int	m_text_y_pos
	reference screen y position of object text
int	m_text_align
	alignment flags used for text rendering
bool	m_text_vertical
bool	m_text_wrap
	true if this text string should be wrapped to available space when drawn
int	m_user_id
void *	m_user_ptr
tcGuiImage *	m_image
	pointer to optional background image

Detailed Description

The tcGuiObject class is an abstract base class from which all ggui skinnable widgets should be derived.

See also:: tcGuiObject Page

Member Enumeration Documentation

enum MityDSP::tcGuiObject::teAlignment

This enumeration is used to describe how widget text should be drawn with respect to the text location point.

Enumerator:

eeAlignLeft	Horizontal left aligned.
eeAlignHCenter	Horizontal center aligned.
eeAlignRight	Horizontal right alignment.
eeAlignHMask	Horizontal alignment mask bits.
eeAlignTop	Vertical top aligned.
eeAlignVCenter	Vertical center aligned.
eeAlignBottom	Vertical bottom alignment.
eeAlignVMask	Vertical alignment mask bits.
eeAlignCenter	Vertical center aligned.
eeAlignTopLeft	Horizontal left aligned.

Constructor & Destructor Documentation

tcGuiObject::tcGuiObject	(	const char *	name,
		tcBench *	bench,
		int	idd,
		uint32	type
	)

Constructor

Parameters:

	name	Object ID name from the XML file.
	parent	Parent window (the GGUI main window).
	idd	The windows control ID that we assigned to this control.
	type	The object type.

tcGuiObject::~tcGuiObject ( ) [virtual]

Destructor

Member Function Documentation

bool tcGuiObject::ParseXML ( TiXmlElement * apElement ) [virtual]

Parse common XML elements from the DOM.

Reimplemented in MityDSP::tcGuiButton, MityDSP::tcGuiCheckBox, MityDSP::tcGuiDisplay, MityDSP::tcGuiGenericGraph, MityDSP::tcGuiImage, MityDSP::tcGuiKnob, MityDSP::tcGuiLabel, MityDSP::tcGuiLamp, MityDSP::tcGuiListbox, MityDSP::tcGuiSlider, MityDSP::tcGuiSpinBox, and MityDSP::tcGuiGraph.

const char* MityDSP::tcGuiObject::name ( ) [inline]

const GSTRING* MityDSP::tcGuiObject::gname ( ) [inline]

uint32 MityDSP::tcGuiObject::type ( ) [inline]

int MityDSP::tcGuiObject::idd ( ) [inline]

const char* MityDSP::tcGuiObject::get_text ( ) [inline]

bool MityDSP::tcGuiObject::is_visible ( ) [inline]

int MityDSP::tcGuiObject::get_x_pos ( ) [inline]

int MityDSP::tcGuiObject::get_y_pos ( ) [inline]

int MityDSP::tcGuiObject::get_height ( ) [inline]

int MityDSP::tcGuiObject::get_width ( ) [inline]

void tcGuiObject::get_rect ( tcRect & rect )

Get the bounding rectangle for the object.

Note:: this rectangle does not include the bounding rectangle of the associated text (if any) of the object.

Parameters:

rect

output bounding rectangle

int MityDSP::tcGuiObject::get_type ( ) [inline]

virtual tcGuiObject* MityDSP::tcGuiObject::get_parent_obj ( ) [inline, virtual]

virtual void MityDSP::tcGuiObject::create ( ) [inline, virtual]

Reimplemented in MityDSP::tcGuiButton, MityDSP::tcGuiCheckBox, MityDSP::tcGuiDisplay, MityDSP::tcGuiGenericGraph, MityDSP::tcGuiImage, MityDSP::tcGuiKnob, MityDSP::tcGuiLabel, MityDSP::tcGuiLamp, MityDSP::tcGuiListbox, MityDSP::tcGuiSlider, MityDSP::tcGuiSpinBox, and MityDSP::tcGuiGraph.

void tcGuiObject::show ( bool show = true ) [virtual]

This function un-hides the object. If hidden the object will not respond to mouse clicks or appear on the screen.

Note:: This function is usually called when the active screen changes from within the script virtual machine.

Reimplemented in MityDSP::tcGuiGraph.

void tcGuiObject::hide ( ) [virtual]

This function hides the object. If hidden the object will not respond to mouse clicks or appear on the screen.

Note:: This function is usually called when the active screen changes from within the script virtual machine.

Reimplemented in MityDSP::tcGuiGraph.

void tcGuiObject::set_text ( const char * text ) [virtual]

Set the text for an object.

Parameters:

text

text to apply.

Reimplemented in MityDSP::tcGuiDisplay.

virtual void MityDSP::tcGuiObject::set_x_pos ( int x ) [inline, virtual]

virtual void MityDSP::tcGuiObject::set_y_pos ( int y ) [inline, virtual]

virtual void MityDSP::tcGuiObject::set_height ( int h ) [inline, virtual]

virtual void MityDSP::tcGuiObject::set_width ( int w ) [inline, virtual]

void MityDSP::tcGuiObject::set_image ( tcGuiImage * image ) [inline]

virtual void MityDSP::tcGuiObject::set_text_x_pos ( int x ) [inline, virtual]

Reimplemented in MityDSP::tcGuiButton, MityDSP::tcGuiListbox, and MityDSP::tcGuiSpinBox.

virtual void MityDSP::tcGuiObject::set_text_y_pos ( int y ) [inline, virtual]

Reimplemented in MityDSP::tcGuiButton, MityDSP::tcGuiListbox, and MityDSP::tcGuiSpinBox.

void MityDSP::tcGuiObject::set_text_font ( tcDspFont * font ) [inline]

void MityDSP::tcGuiObject::set_text_align ( int align ) [inline]

void MityDSP::tcGuiObject::set_text_color ( tsRgb color ) [inline]

void MityDSP::tcGuiObject::set_text_vertical ( bool vert ) [inline]

void MityDSP::tcGuiObject::set_text_wrap ( bool wrap ) [inline]

void MityDSP::tcGuiObject::set_fg_color ( tsRgb color ) [inline]

void MityDSP::tcGuiObject::set_bg_color ( tsRgb color ) [inline]

void MityDSP::tcGuiObject::set_user_id ( int id ) [inline]

virtual void MityDSP::tcGuiObject::set_animate ( bool animate ) [inline, virtual]

Reimplemented in MityDSP::tcGuiDisplay.

void MityDSP::tcGuiObject::set_user_ptr ( void * ptr ) [inline]

int MityDSP::tcGuiObject::get_user_id ( ) [inline]

tsRgb MityDSP::tcGuiObject::get_fg_color ( ) [inline]

tsRgb MityDSP::tcGuiObject::get_bg_color ( ) [inline]

tsRgb MityDSP::tcGuiObject::get_text_color ( ) [inline]

bool tcGuiObject::is_point_in	(	int	x,
		int	y
	)			`[virtual]`

This function determines if the specified point is within the object rectangle.

Parameters:

	x	The X position to test.
	y	The Y position to test.

Returns:: true if the point is in the control rectangle, false if not.

bool tcGuiObject::is_rect_overlapped ( tcRect & rect ) [virtual]

This function determines if the specified rect overlaps the object rectangle.

Parameters:

rect

the rectangle to test

Returns:: true if the rectangle overlaps.

virtual bool MityDSP::tcGuiObject::lbutton_down	(	int	x,
		int	y
	)			`[inline, virtual]`

Reimplemented in MityDSP::tcGuiButton, MityDSP::tcGuiCheckBox, MityDSP::tcGuiKnob, MityDSP::tcGuiListbox, MityDSP::tcGuiSlider, and MityDSP::tcGuiSpinBox.

void tcGuiObject::lbutton_up	(	int	x,
		int	y
	)			`[virtual]`

Empty method for handling left mouse button up events. Should be overridden by objects requiring left button up events.

Parameters:

	x	x screen coordinate of up event
	y	y screen coordinate of up event

Reimplemented in MityDSP::tcGuiButton, MityDSP::tcGuiCheckBox, MityDSP::tcGuiKnob, MityDSP::tcGuiListbox, MityDSP::tcGuiSlider, and MityDSP::tcGuiSpinBox.

virtual void MityDSP::tcGuiObject::mouse_move	(	int	x,
		int	y,
		int	flags
	)			`[inline, virtual]`

Reimplemented in MityDSP::tcGuiButton, MityDSP::tcGuiCheckBox, MityDSP::tcGuiKnob, MityDSP::tcGuiListbox, MityDSP::tcGuiSlider, and MityDSP::tcGuiSpinBox.

virtual bool MityDSP::tcGuiObject::does_l_mouse ( ) [inline, virtual]

Reimplemented in MityDSP::tcGuiDisplay, MityDSP::tcGuiImage, and MityDSP::tcGuiLabel.

virtual void MityDSP::tcGuiObject::animate ( ) [inline, virtual]

Reimplemented in MityDSP::tcGuiDisplay, MityDSP::tcGuiLamp, and MityDSP::tcGuiSpinBox.

virtual void MityDSP::tcGuiObject::draw ( tcGuiDspDisplay & pd ) [inline, virtual]

Reimplemented in MityDSP::tcGuiButton, MityDSP::tcGuiCheckBox, MityDSP::tcGuiDisplay, MityDSP::tcGuiImage, MityDSP::tcGuiKnob, MityDSP::tcGuiLabel, MityDSP::tcGuiLamp, MityDSP::tcGuiListbox, MityDSP::tcGuiSlider, MityDSP::tcGuiSpinBox, and MityDSP::tcGuiGraph.

void tcGuiObject::invalidate ( tcRect * bckgrnd_redraw = NULL )

Force an object to invalidate the region of the screen it is situated in.

Note:: this routine will invalidate the bounding rectangle that includes it's object width and height as well as any associated text set in the set_text method.; this routine is not executed in the object is not visible.

Parameters:

bckgrnd_redraw

not used, set to NULL

void tcGuiObject::calculate_text_rect ( int alignment ) [protected, virtual]

Re-computes the bounding box of the associated object text set in set_text method. This method should be called whenever the text fields or positions have been changed.

Parameters:

alignment

text alignment flags

Note:: This method is currently unimplemented in the MityDSP. The results of this operation will set the text bounding rectangle equal to the object bounding rectangle (from xml_set_x_pos, xml_set_y_pos, xml_set_width, xml_set_height).

Todo:: Need to fix this for MityDSP port... SJG 9/9/09 - Added check for m_text.strlen() as in

void tcGuiObject::draw_text	(	tcGuiDspDisplay &	pd,
		int	alignment,
		int	dip = `0`,
		float	opacity = `1.0F`
	)			`[protected, virtual]`

Draws the text set in set_text() method to the screen context supplied.

Parameters:

	pd	reference to active screen display context.
	alignment	text alignment bitmask
	dip	+x and +y offset text will be drawn dip pixels lower and to the right of nominal text location.
