Ethernet PHY configuration and SSH access
Added by Atef Dorai about 14 hours ago
Hello,
I am working with a MitySOM-5CSx module on my own custom carrier board and I am seeing different behavior depending on which SD card image I use. I would appreciate your help to understand the correct configuration.
Hardware setup:
SoM: MitySOM-5CSx
Critical Link development kit: MitySOM-5CSx Dev Kit (used as reference)

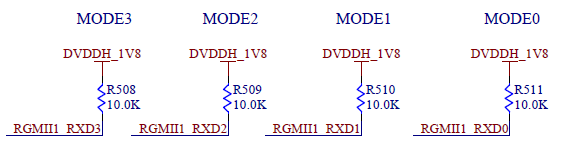

My custom carrier: same RGMII connections as the dev kit (clipboard-202512081603-uzgqp.png)
MODE0, MODE1 and MODE2 pins on the PHY are now strapped to match the dev kit schematic (same pull-up / pull-down configuration).
Behavior with the original dev-kit SD card
When I use the original SD card that shipped with the dev kit:
Linux boots correctly on my custom carrier.
eth0 comes up and receives an IP address from DHCP.
I can reliably ping the board and I can open an SSH session (e.g. ssh root@<board_ip>).
Network traffic appears stable.
Behavior with a new SD card programmed from your website image

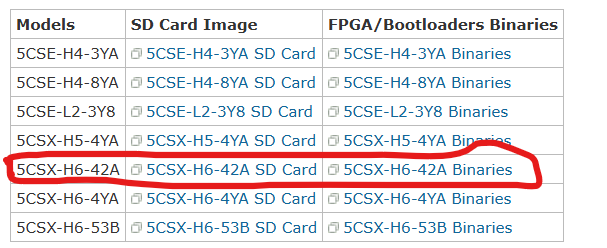

I downloaded an SD card image from your website/wiki (clipboard-202512081607-5qri5.png) and wrote it to a new SD card.
With this image:
Linux also boots correctly.
eth0 comes up and receives an IP address from DHCP (for example 10.10.121.3, gateway 10.10.121.254).
However, there is a lot of packet loss when I ping the board from my PC, and
I cannot connect via SSH: ssh root@10.10.121.3 always ends with “Connection timed out”. (
clipboard-202512081627-wp3pk.png)

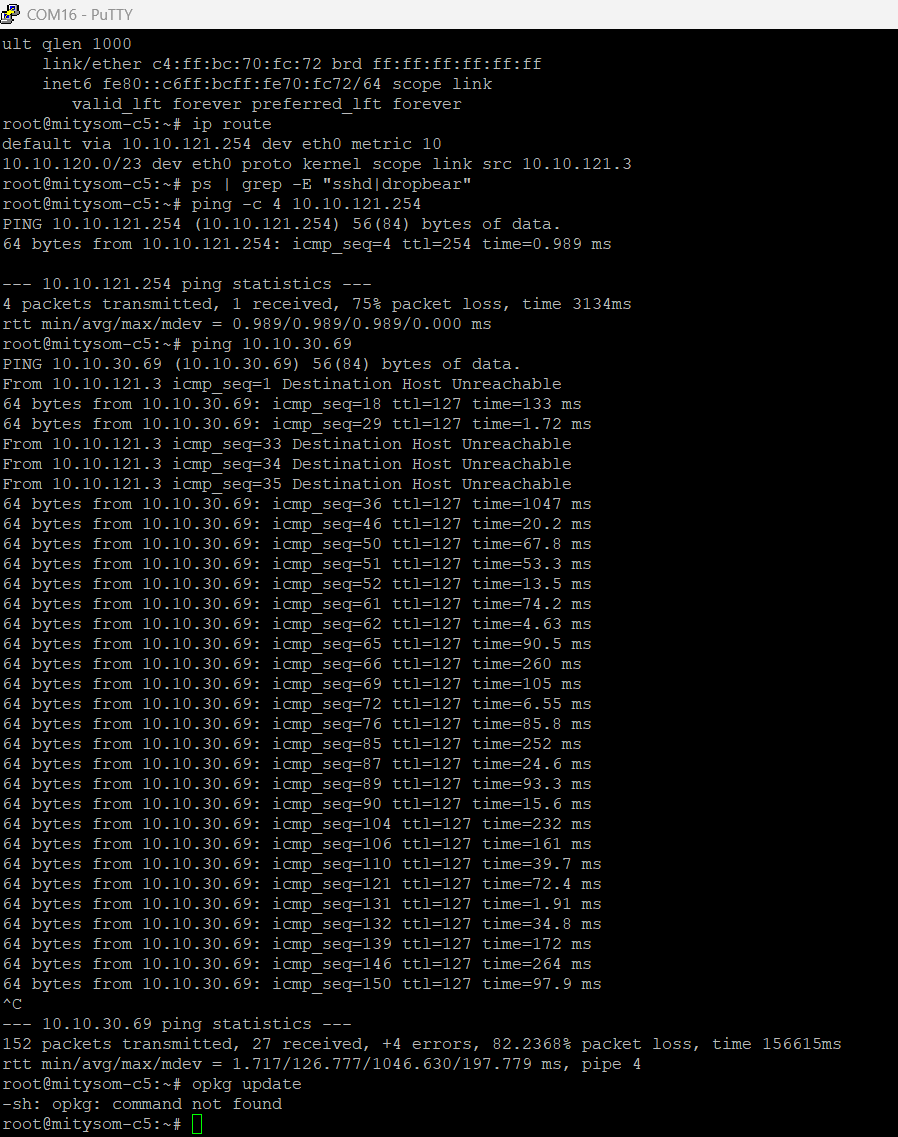

On the console, there is no sshd or dropbear process running, and there is no opkg binary, so I cannot simply install a SSH server from packages (clipboard-202512081609-iswi2.png).
So, with the original dev-kit SD card SSH works fine on my custom carrier, but with the new SD image from the website SSH is not available and the network connection is unstable.
Questions
Is the SD card image I downloaded intended to include a running SSH server by default (either OpenSSH or dropbear)?
If yes, do you have any recommendations or known issues regarding SSH on this image?
Could the SD card image assume a different MODE0/MODE1/MODE2 configuration or a specific PHY MDIO address than what I have on my carrier?
Thank you in advance for your support.
Best regards,
Replies (1)
RE: Ethernet PHY configuration and SSH access - Added by Zachary Miller about 12 hours ago
Hi Atef,
The image you downloaded should have an SSH server (OpenSSH) running by default, yes. ps by default doesn't show all processes, which is why the grep in your screenshot didn't find it. Running ps -A or ps aux should confirm that sshd is running.
We don't have any known issues with SSH on this image, but since you're having trouble pinging as well, I suspect this is a more general Ethernet issue. One change that our more recent kernels (including the image you downloaded but probably not the one that came preinstalled on the original dev kit) have is that the default PHY skew adjustments in our device tree require the PHY to be detected at address 3. If it's not, the skews will most likely be missing, which can cause quite bad packet loss depending on the carrier.
You can confirm what PHY address was detected by running ethtool eth0 | grep PHYAD. Note that previous versions of our dev kit used address 2 and also had missing level translation that could cause unreliable address latching; if you referenced revision 10 or earlier, there's a good chance this is the issue.
If the PHY is reliably being detected at an address other than 3, you can try changing the reg value in the phy0 device tree node to match; or, if you let us know the detected address, we can provide an updated device tree with the change. Long term, if you're planning to use a custom device tree anyway, there's not really any reason to match the dev kit's PHY address if you used 2 or another value in your design (although we still recommend the level translation discussed in the link above, if possible). If you do want your carrier to work better with our stock device tree though you'd need to change the PHYAD strapping resistors to select address 3.
As an aside, in case you have a local Yocto build you'd like to install packages from, our MitySOM-5CSx images are configured with rpm as the package manager rather than opkg. We don't host a package server though, so you'd need to build any desired packages yourself.
Zach
