DFU boot¶

DFU or Device Firmware Upgrade is a method for transferring and flashing boot files over USB. The 62x/62a can boot over DFU, transferring the necessary U-Boot files from a host computer to the device via a USB connection.

References:
https://dfu-util.sourceforge.net/
https://software-dl.ti.com/processor-sdk-linux/esd/AM62X/latest/exports/docs/linux/Foundational_Components/U-Boot/UG-DFU.html

Procedure¶

1. Build a DFU Compatible U-Boot¶

U-Boot must have special configurations enabled

1. To setup & build U-Boot please follow this wiki page U-Boot_Building_for_MitySOM-AM62
2. Apply the DFU config fragment. This can be done by applying this patch to the 62x-build.sh or 62ax-build.sh scripts:
   62x:


   diff --git a/62x-build.sh b/62x-build.sh
   index ea9f22b04ee..b4e35bcf757 100755
   --- a/62x-build.sh
   +++ b/62x-build.sh
   @@ -157,7 +157,7 @@ fi
    # Note: BINMAN_INDIRS is used to fetch the DM and SYSFW binaries. The edgeai demos require the binaries to be pulled from the TI sdk

    # Build R5 u-boot. tiboot3.bin
   -make -j"$(nproc)" "$MV" ARCH=arm CROSS_COMPILE=arm-none-linux-gnueabihf- O="$R5_BUILDDIR" "${MACHINE}_r5_defconfig"
   +make -j"$(nproc)" "$MV" ARCH=arm CROSS_COMPILE=arm-none-linux-gnueabihf- O="$R5_BUILDDIR" "${MACHINE}_r5_defconfig" am62x_r5_usbdfu.config
    make -j"$(nproc)" "$MV" ARCH=arm CROSS_COMPILE=arm-none-linux-gnueabihf- O="$R5_BUILDDIR" BINMAN_INDIRS="$TI_LINUX_FW_DIR"

    # Build A53 u-boot



   62ax:


   diff --git a/62ax-build.sh b/62ax-build.sh
   index 541d3959ea5..ad324b55789 100755
   --- a/62ax-build.sh
   +++ b/62ax-build.sh
   @@ -163,8 +163,7 @@ fi
    # Note: BINMAN_INDIRS is used to fetch the DM and SYSFW binaries. The edgeai demos require the binaries to be pulled from the TI sdk

    # Build R5 u-boot. tiboot3.bin
   -make -j"$N_PROC" DEVICE_TREE_DEBUG=1 "$MV" ARCH=arm CROSS_COMPILE=arm-none-linux-gnueabihf- O="$R5_BUILDDIR" "${MACHINE}_r5_defconfig"
   +make -j"$N_PROC" DEVICE_TREE_DEBUG=1 "$MV" ARCH=arm CROSS_COMPILE=arm-none-linux-gnueabihf- O="$R5_BUILDDIR" "${MACHINE}_r5_defconfig" am62x_r5_usbdfu.config
    make -j"$N_PROC" DEVICE_TREE_DEBUG=1 BINMAN_DEBUG=1 BINMAN_VERBOSE=3 "$MV" ARCH=arm CROSS_COMPILE=arm-none-linux-gnueabihf- O="$R5_BUILDDIR" BINMAN_INDIRS="$TI_LINUX_FW_DIR"

    # Build A53 u-boot


3. Run the respective build script.

This u-boot will be sent to and run from RAM on the SOM. Don't program this to another boot media as it will sit trying to load further files from USB DFU.

2. Setup the device¶

1. Connect the device and host computer with a USB cable.

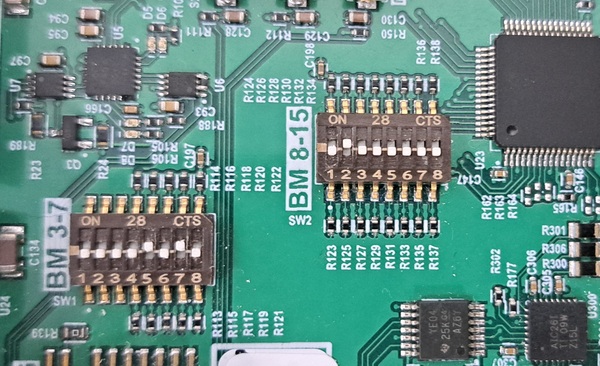

2. Set the boot switches to DFU mode. Switches: SW1 = [00001010] SW2 = [01000000].

3. Turn on the device.

3. Transfer U-Boot¶

1. Install dfu-util.
2. Run dfu-util -l to ensure the device is ready.


   $ sudo dfu-util -l
   dfu-util 0.11

   Copyright 2005-2009 Weston Schmidt, Harald Welte and OpenMoko Inc.
   Copyright 2010-2021 Tormod Volden and Stefan Schmidt
   This program is Free Software and has ABSOLUTELY NO WARRANTY
   Please report bugs to http://sourceforge.net/p/dfu-util/tickets/

   Found DFU: [0451:6165] ver=0200, devnum=24, cfg=1, intf=0, path="3-2.4.4.2", alt=1, name="SocId", serial="01.00.00.00"
   Found DFU: [0451:6165] ver=0200, devnum=24, cfg=1, intf=0, path="3-2.4.4.2", alt=0, name="bootloader", serial="01.00.00.00"


3. Transfer the dfu u-boot compiled tiboot3.bin first. You will need to specify the devnum and name. (Note: If you are trying to boot a GP SOM, you will have to use tiboot3-am62x-gp-evm.bin instead).
   62x:


   $ sudo dfu-util -R -d <refer to above command for devnum, in this case it is 24> -a bootloader -D build-mitysom_am62x_devkit/r5/tiboot3.bin



   62a:


   $ sudo dfu-util -R -d <refer to above command for devnum, in this case it is 24> -a bootloader -D build-mitysom_am62ax_devkit/r5/tiboot3.bin


4. Transfer tispl.bin and then u-boot.img
   62x:


   $ sudo dfu-util -R -d <refer to above command for devnum, in this case it is 24> -a tispl.bin -D build-mitysom_am62x_devkit/a53/tispl.bin
   $ sudo dfu-util -R -d <refer to above command for devnum, in this case it is 24> -a u-boot.img -D build-mitysom_am62x_devkit/a53/u-boot.img



   62a:


   $ sudo dfu-util -R -d <refer to above command for devnum, in this case it is 24> -a tispl.bin -D build-mitysom_am62ax_devkit/a53/tispl.bin
   $ sudo dfu-util -R -d <refer to above command for devnum, in this case it is 24> -a u-boot.img -D build-mitysom_am62ax_devkit/a53/u-boot.img


5. The device will now boot into U-Boot. You can create a defconfig fragment and use it to change CONFIG_BOOTCOMMAND in the a53 build, you can then direct what you would like U-Boot to do. By default, U-Boot will attempt to boot Linux from the SD card and then eMMC like normal.

DFU Flash/Program boot media¶

TODO

Note: DFU flashing gets about 2.6MB/s throughput. This means flashing an 8GB edgeai image could take an hour. However, switching over to fastboot tool flashing is possible, which gets about 25.8MB/s throughput, bringing that flash time down to 6 minutes. Most production situations would be unlikely to need an 8GB filesystem image, most projects filesystems are usually around 1GB or less.
